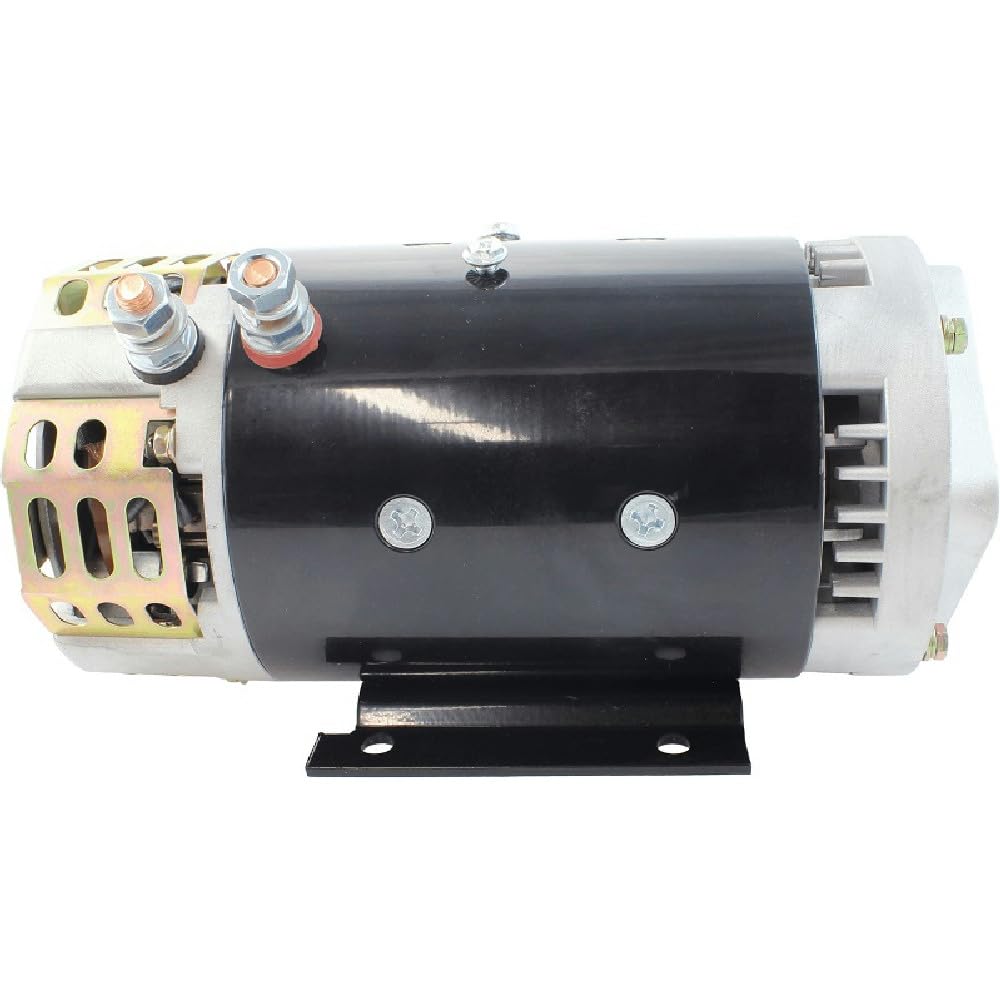

Rareelectrical 24V Lift Pump Motor Fits 1997-2016 Genie Gs-2032 Gs-2632
Sale price
$90.00
Regular price $451.00
Skip to product information
Rareelectrical 24V Lift Pump Motor Fits 1997-2016 Genie Gs-2032 Gs-2632
Sale price
$90.00
Regular price $451.00
- Compatible with GENIE. Please verify your OEM part number from your original unit to help ensure fitment.
- Replaces: Genie Part Numbers: / 40844 / 40844Gt / Advanced Dc Motors Part Numbers: / 140-01-4007B, 140014007B / Specifications: / Type: Dc Hydraulic Pump Motor / Voltage: 24 Volt Dc / Power: 4.5 Hp (Genie Rating) / Rotation: Clockwise (Cw) / Shaft: 9 Tooth Internal (Female) Spline, 25 Mm / 0.984 In / Frame Od: 141.9 Mm / 5.587 In / Length: 285.2 Mm / 11.228 In / Pump Mount: Four 3/8-24 Threaded Holes In The Drive End Housing / Terminals: Two M10-1.5 Studs / Weight:
- Applications: ⚠️ 24 Volt Dc 4.5 Hp Cw 9 Tooth Internal Spline Pump Motor, New: / 24V Dc, 4.5 Hp, Clockwise, 9 Tooth Internal Spline, 25 Mm Shaft, 141.9 Mm Od, 285.2 Mm Long / Four 3/8-24 Threaded Pump Holes In The Drive End Housing, Two M10-1.5 Terminals, 41.04 Lb / Hydraulic Drive (H-Drive) Gs Machines Only: E-Drive And 2025 Next Generation Gs Use A Different Motor / Genie Gs-1530 / Gs-1930 Slab Scissor Lifts: / Genie Gs-1530 To Sn 75999, 1997-2005 (To Sn 16988 Add The Controller
- Applications: Controller Mount Bracket) / Genie Gs-1530 Sn 05A-76000 To 15A-141945, 05B-76000 To 09B-98941, 08C-101 To Gs30c-24457, 2005-2016 / Genie Gs-1530 Sn 15A-141946 To Gs3016a-151486 And 16P-151487 To Gs30p-196689, 2015-2016 And Later / Genie Gs-1530 China Built Sn Gs3014d-101 To Gs30d-40000, 2014-2016 And Later / Genie Gs-1530 H-Drive From Sn Gs30d-40101 And From Sn Gs30p-200101 / Genie Gs-1930 To Sn 75999, 1997-2005 (To Sn 16988 Add The Controller Mount Bracket) / Genie...
- DC Motor - Source: Aftermarket
