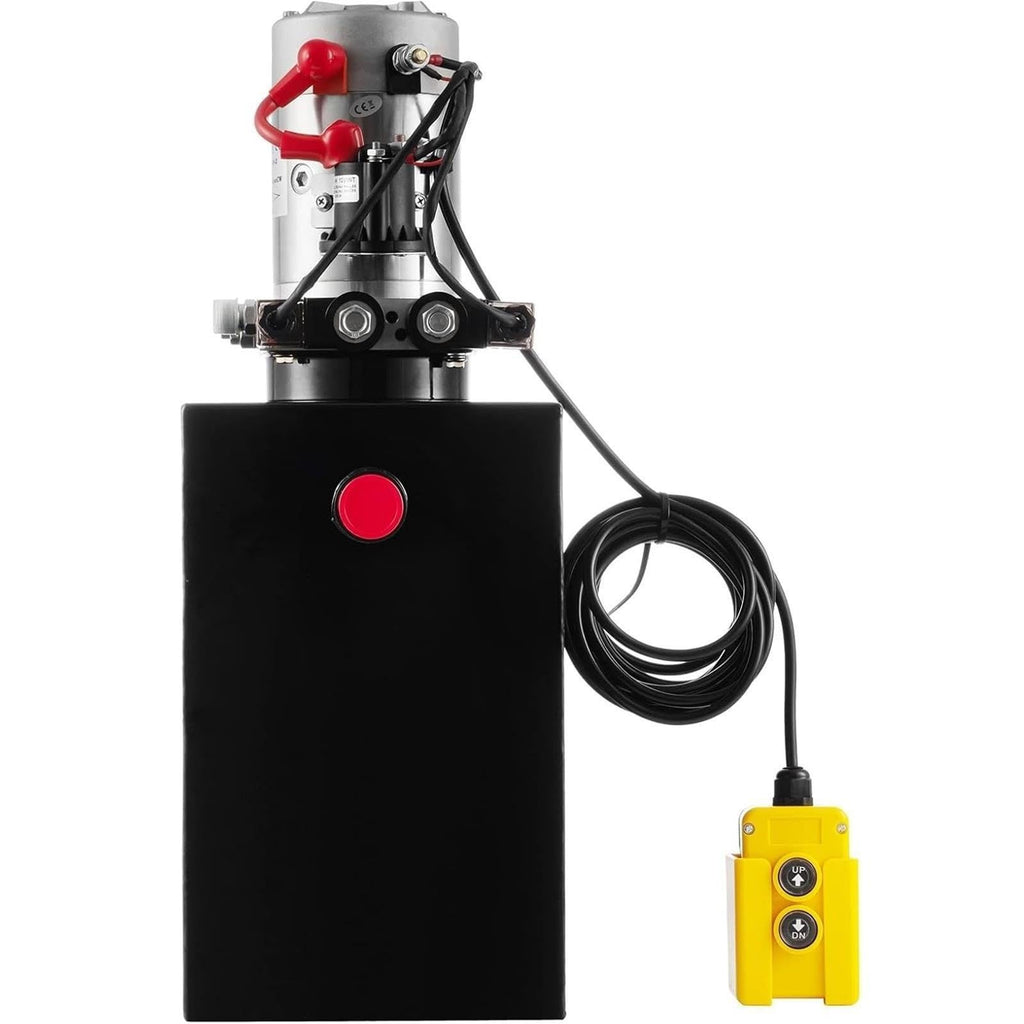

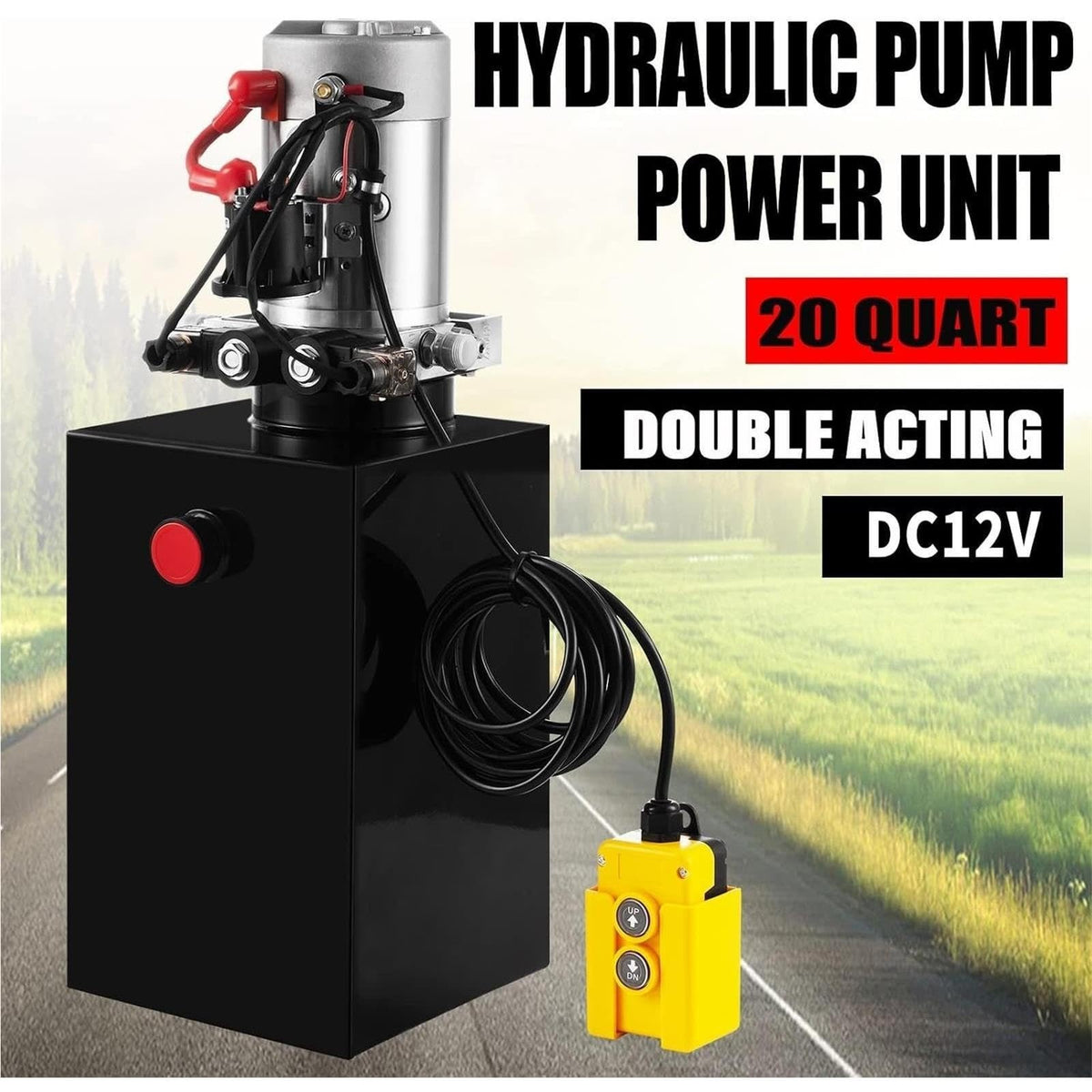

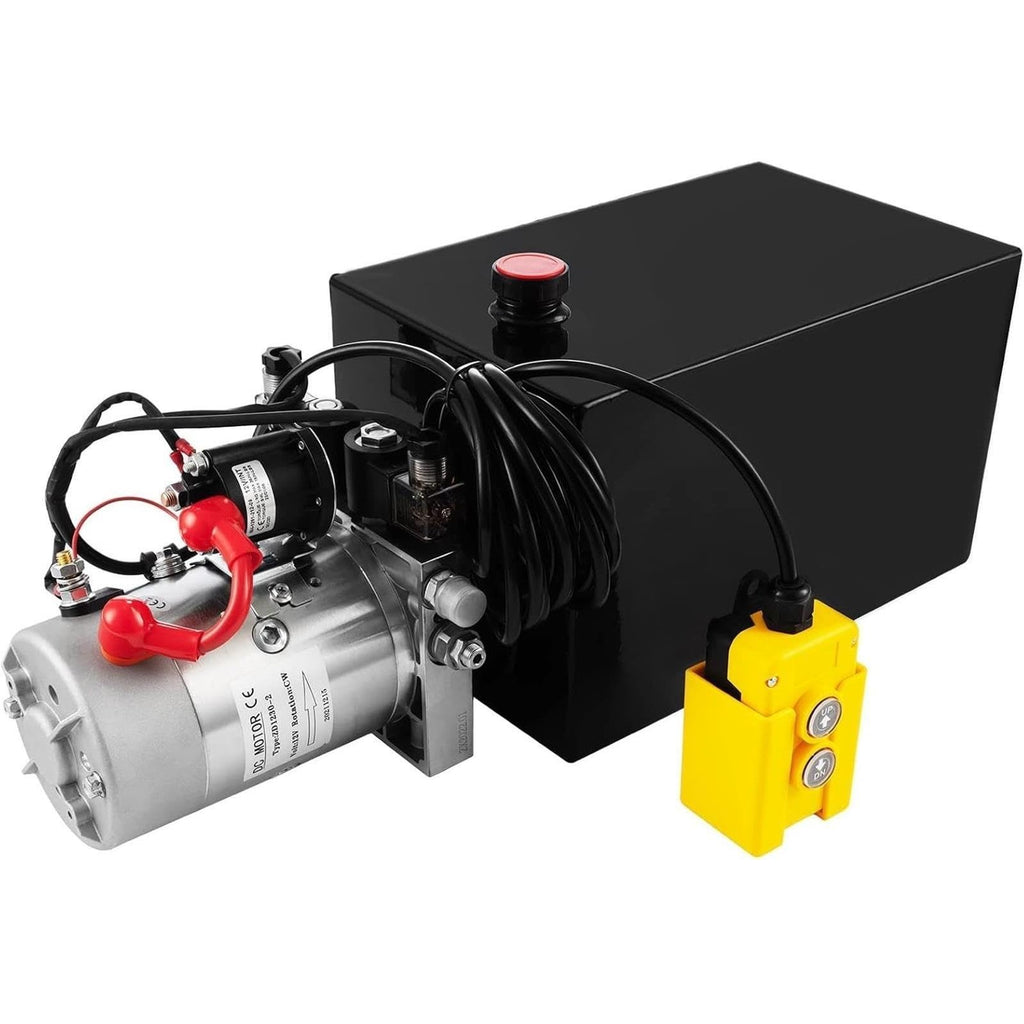

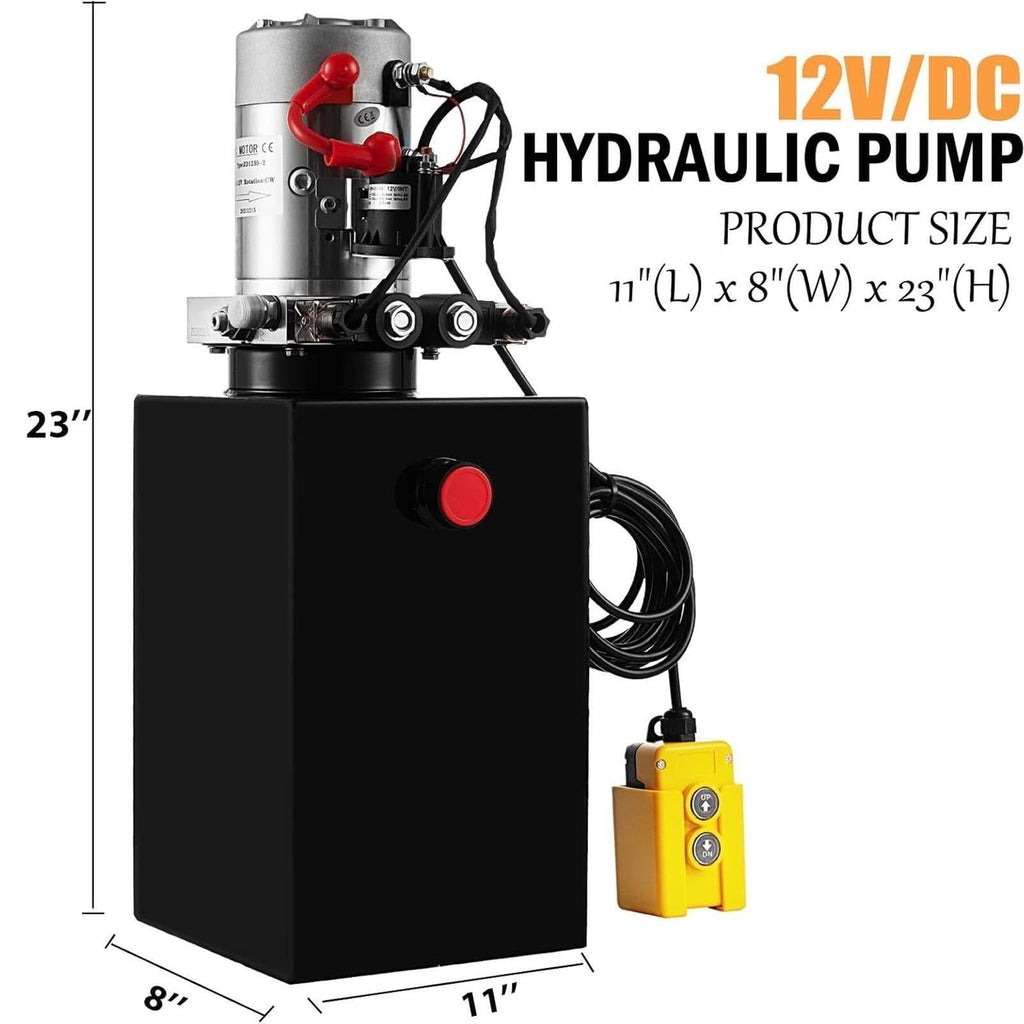

12v Dc Double Acting Hydraulic Pump, Hydraulic Power Unit
Sale price
$168.00
Regular price $839.00
Skip to product information
12v Dc Double Acting Hydraulic Pump, Hydraulic Power Unit
Sale price
$168.00
Regular price $839.00
- Premium Quality: Features a 20 quart steel reservoir, 12V DC motor, 2 GPM flow rate and 2850 r/min rated speed. Includes SAE #6 ports, 1.6KW-3.0KW motor power and a relief valve pressure of 22 MPA. Max relief pressure is 3200 PSI on the A port (SAE#6) and 1500 PSI on the B port (SAE#6), with a lift capacity of 3-5 tons.

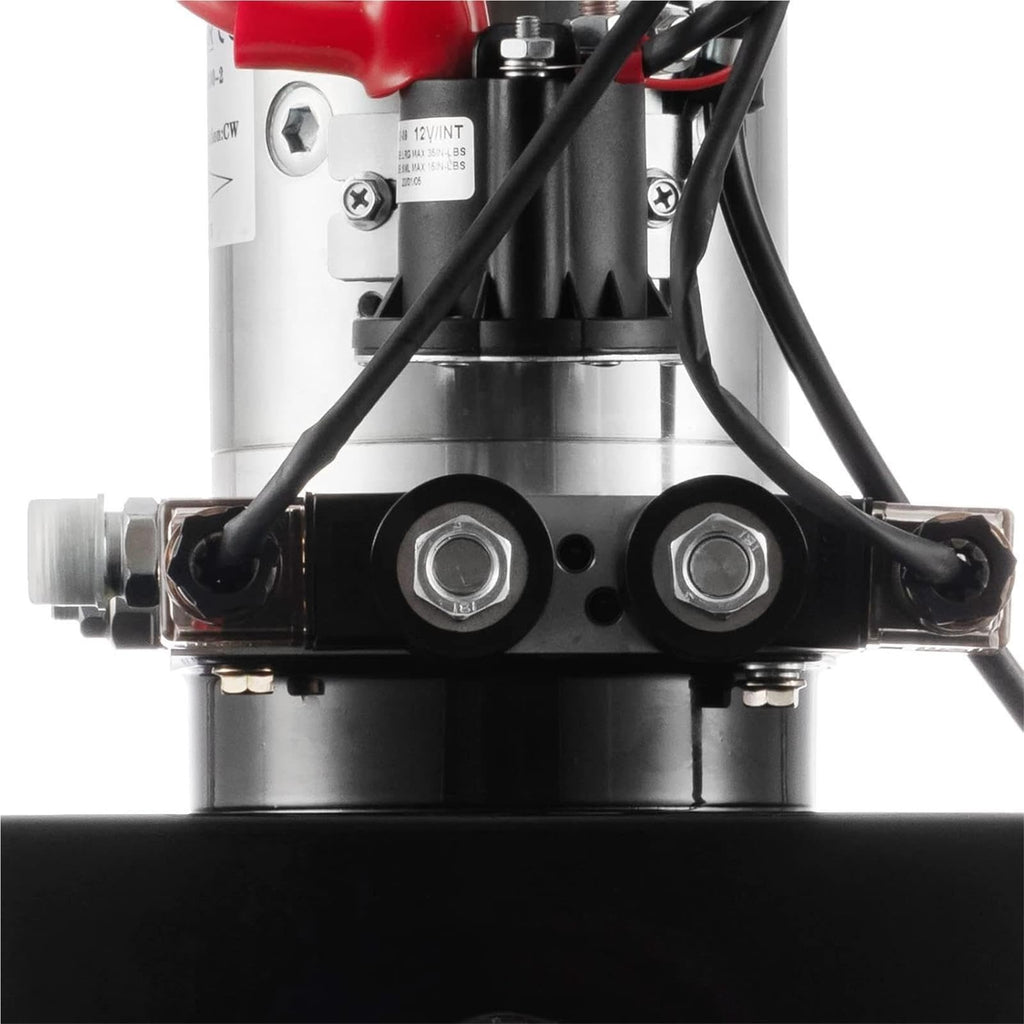

- Easy to Install: This 12V hydraulic power unit comes with SAE#6 (9/16-18) A and B ports. The 2-position/2-way cartridge has an internal piloted check valve to help prevent internal bypass and maintain constant pressure. The circuit design also uses a cartridge check and adjustable relief valve on the main and B port. A practical replacement pump for 12V DC remotely controlled hydraulic systems.

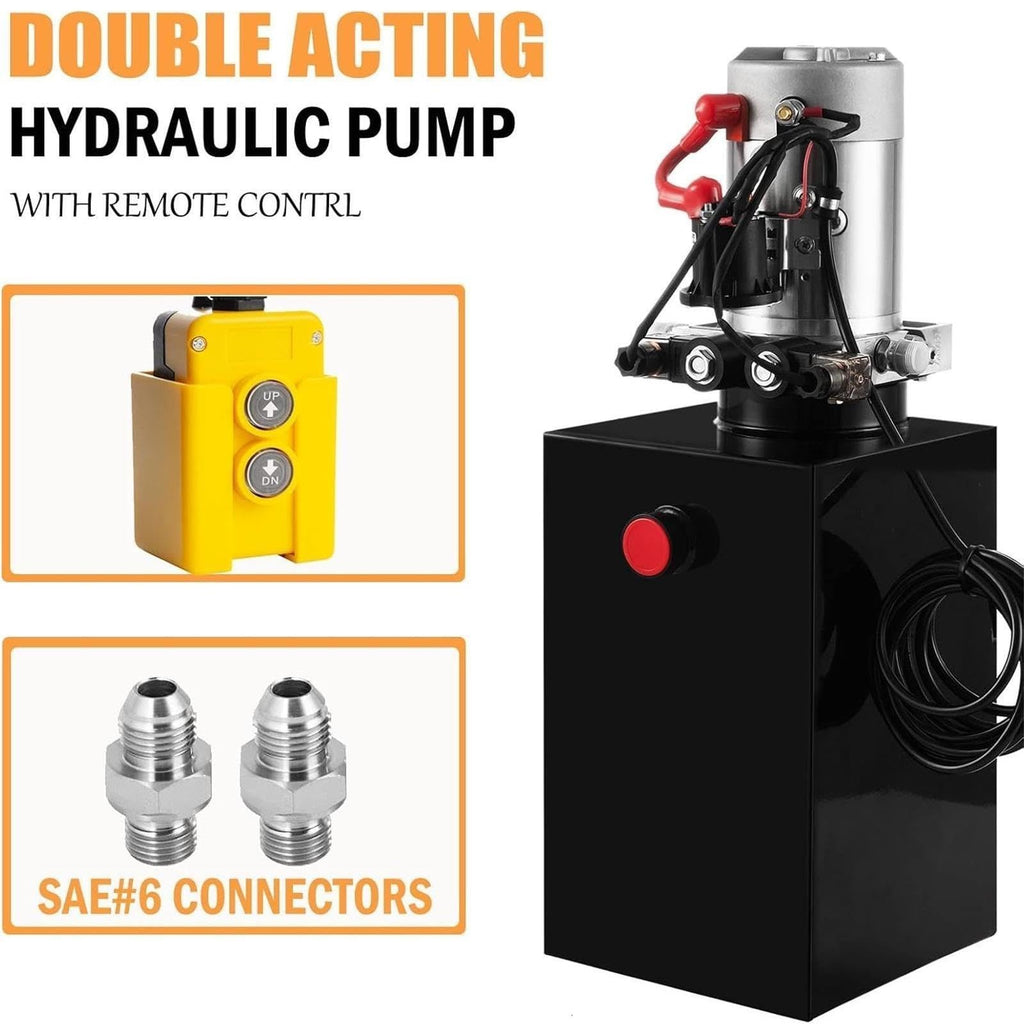

- Remote Control: The magnetic two-button remote control includes a bracket and 15 feet of cable with a quick connect at the motor. This hydraulic electric pump has a powerful motor with quick start and fast oil output, providing strong power for hydraulic systems such as dump trailers and dump trucks, and completing lifting in a short time. The relief valve helps avoid overpressure for safer, more reliable operation.

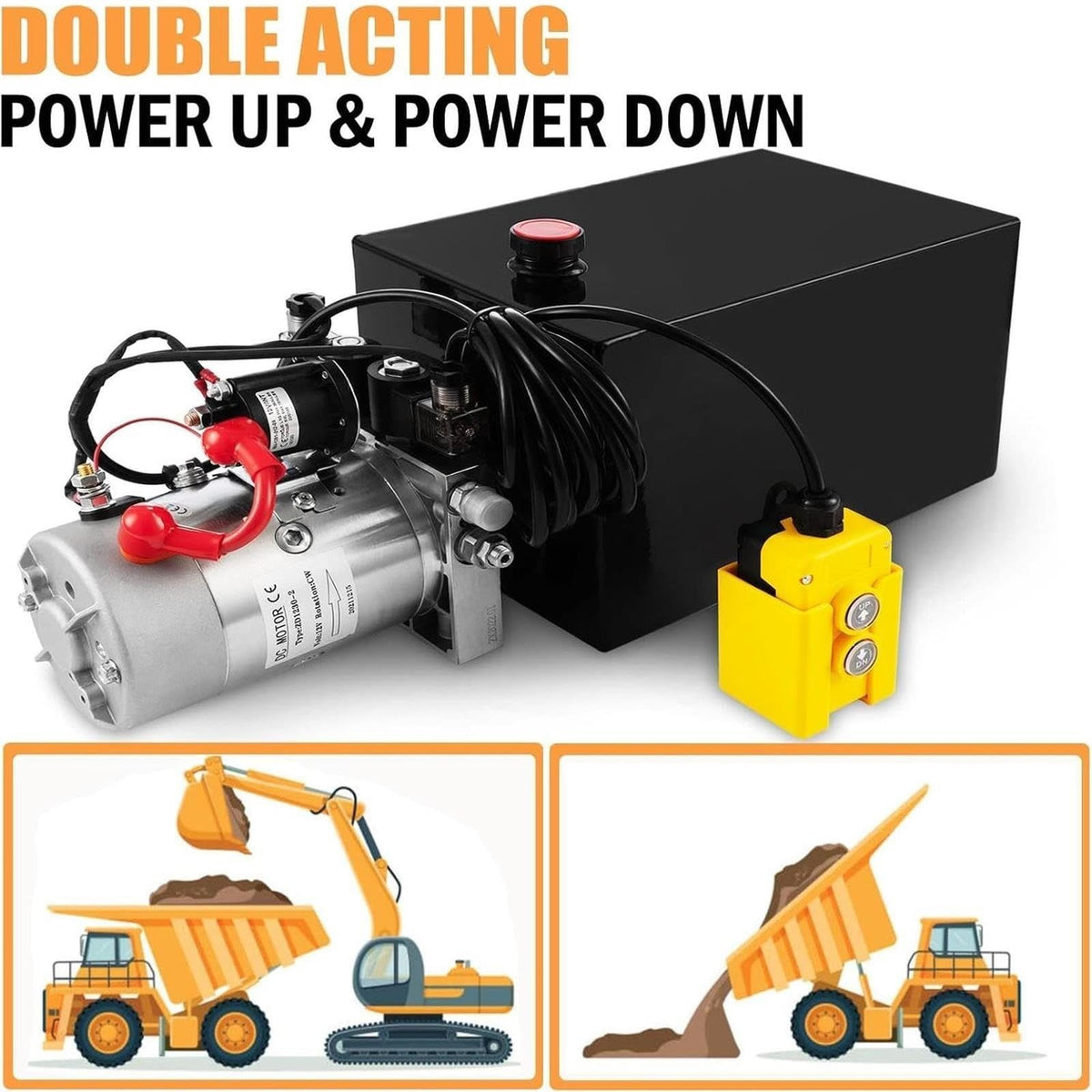

- Double Acting Power Up and Power Down: Handheld pendant with about 15 foot (4.5m) removable cord and start solenoid. SAE #6 port, horizontal mount.
- Wide Application: This power unit is widely used in dump trailers, dump trucks, RVs, boat lifts, some liftgates, tow trucks, wreckers, car haulers, agriculture equipment, snow plow equipment and more. It is compatible with many dump trailers and movers and works as a direct replacement for 12V DC remotely controlled hydraulic systems.
